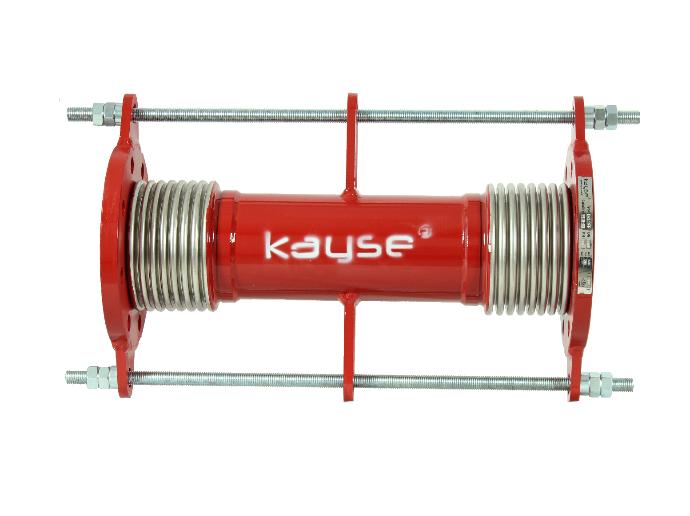

Kayse Limit Rod Dilatation Expansion Joints

Dilatation Expansion joints are the interconnection elements that ensure
uninterrupted and efficient operation of the installation in the joints
of buildings with different foundations (Dilatation), by absorbing
strain and rupture that can occur in the pipelines due to building
collapses or earthquakes, and lateral deviations. These types of
expansion joints consisting of double bellows can be fixed to the
desired expansion amounts by using limit rods. They can be used at all
dilatation points in building passages.
Bellows | AISI 304 Stainless Steel, AISI 316 & 321 (Optional) |
Flange | St 37.2 Carbon Steel, Stainless Steel (Optional) |
Connection Size | DN25 (1”) - ...... - DN1000 (40”) |
Limit Rod | Carboon Steel, Stainless Steel (Optional) |
Pressure | PN16, PN25/40 (Optional) |
Temperature | -90 °C + 550 °C |
